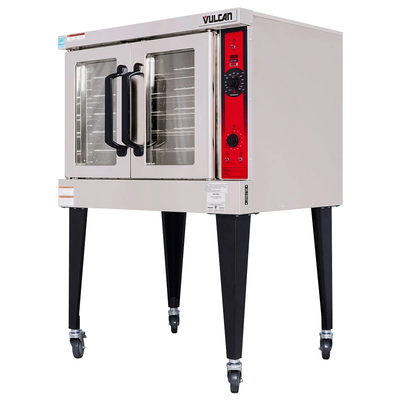

Vulcan VC4ED Single Deck Electric Convection Oven

Vulcan VC4ED Single Deck Electric Convection Oven

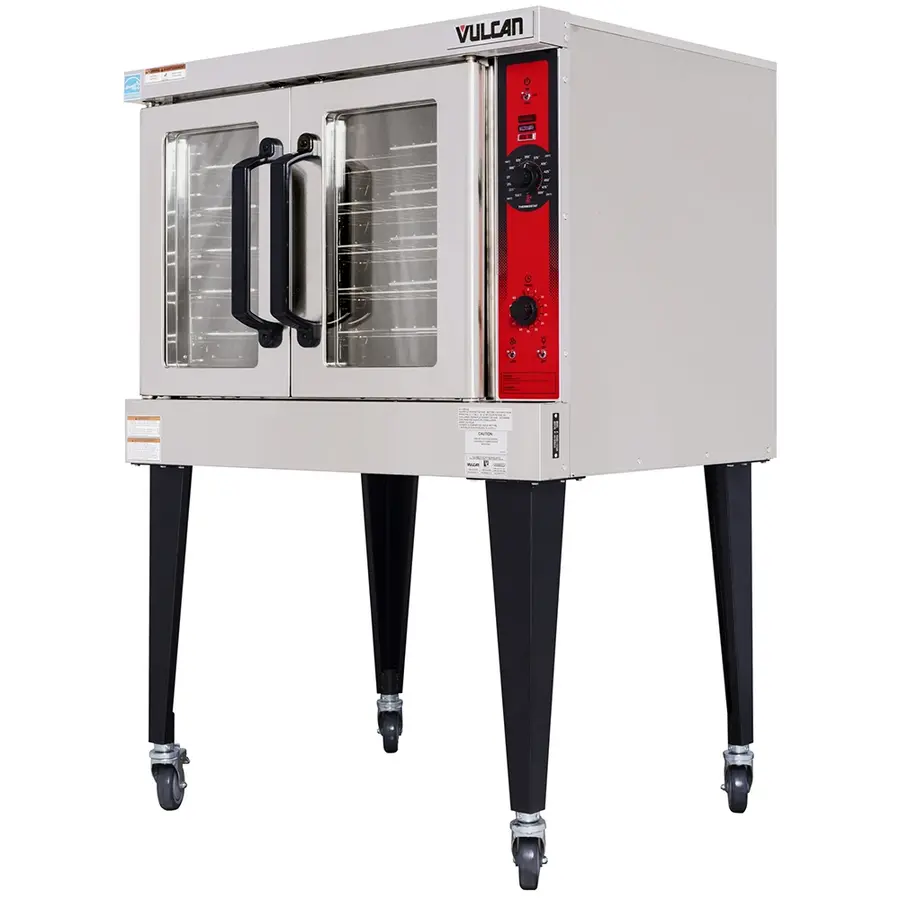

The Vulcan VC4ED Single Deck Electric Convection Oven has solid-state temperature controls that adjust from 150° to 500°F. It also has a 60-minute timer with audible alarm. It has a stainless steel front, sides and top. It features painted legs, independently operated stainless steel doors with windows that open a full 180°, and non-sag insulation is applied to the top, rear, sides, bottom and doors. Porcelain enamel on steel oven interior measures 29"w x 22 1/8"d x 20"h. Two interior oven lights. Five nickel plated oven racks measure 28 1/4" x 20 1/2". Eleven position nickel-plated rack guides with positive rack stops. Heated by electric solid sheath elements rated at 12 KW. Furnished with a two speed 1/2 H.P. oven blower-motor. Oven cool switch for rapid cool down. 208 or 240 volt, 60 Hz, 1 or 3 phase. It has a moisture vent damper control and it comes with one year limited parts and labor warranty, two yearr warranty for K-12 schools .

The optional features include stainless steel legs, five hour timer in place of 60 minute timer (model VC4ED), simultaneous opening chain driven doors, stainless steel open stand with storage rack, casters, flanged feet, 480V/60 Hz/1 or 3 phase, and second year extended limited parts and labor warranty.

The accessories include stainless steel rear motor enclosure, extra oven rack(s), stainless steel drip pan, and stacking kit.

SPECIFICATIONS

Specifications and design are subject to change without notice.

MODEL NO.:

VC4ED

PRODUCT NAME:

Vulcan VC4E Series Single Deck Electric Convection Ovens

EXTERIOR DIMENSIONS:

Width: 40"

Depth: 41 1/2" (includes door handles)

Height: 56 3/4" on 25 3/4" legs

OPTIONAL VOLTAGES:

480 volt, 60 Hz, 3 phase.

220/380 volt, 50 Hz, 1 phase, 3 wire.

220/380 volt, 50 Hz, 3 phase, 4 wire.

240/415 volt, 50 Hz, 3 phase, 4 wire.

TOTAL CONN. KW:

12.5

3 PHASE LOAD KW PER PHASE:

X-Y: 4

Y-Z: 4

X-Z: 4.5

NOMINAL AMPS PER LINE WIRE:

1 Phase: 208V: 60

240V: 52

3 Phase: 208V: X: 35 Y: 33 Z: 35

240V: X: 33 Y: 29 Z: 33

480V: X: 14 Y: 15 Z: 15

KNOCKOUTS:

1.750 dia. knockout in top for stacking conduit connection. 1.50 and 2.00 dia. concentric knockouts in base for conduit connection. Knockouts for stacking.

CERTIFICATIONS & LISTINGS:

Energy Star rated. NSF listed. U L listed. U L listed to Canadian safety standards.
