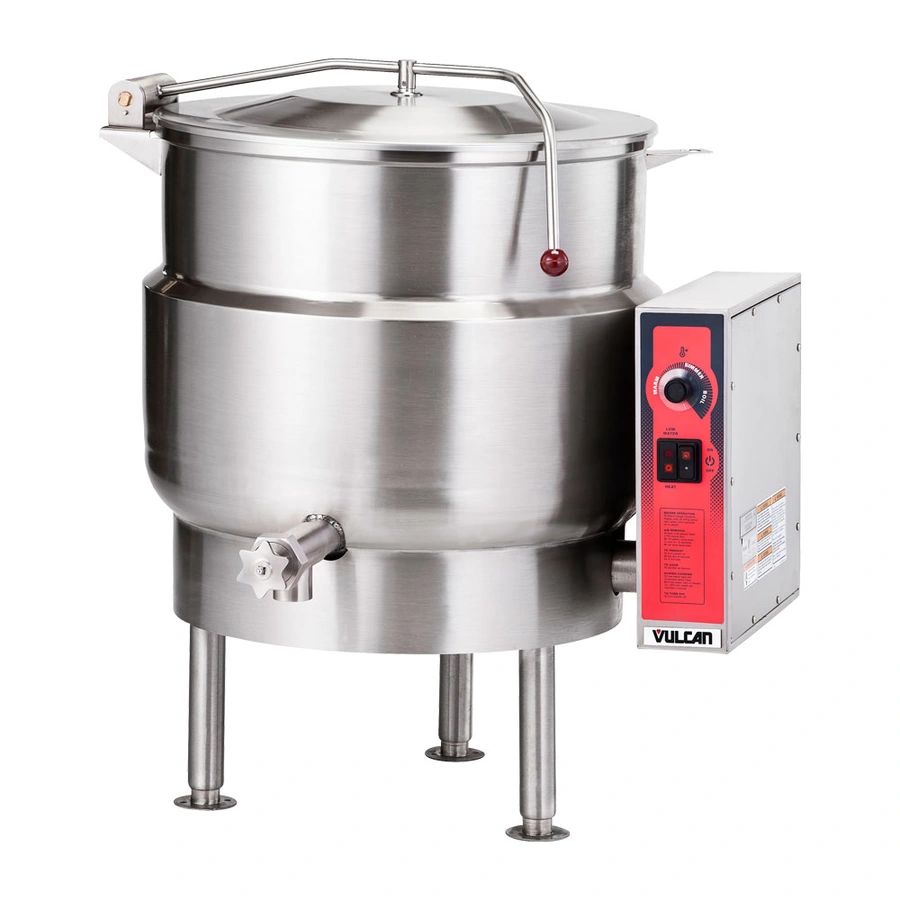

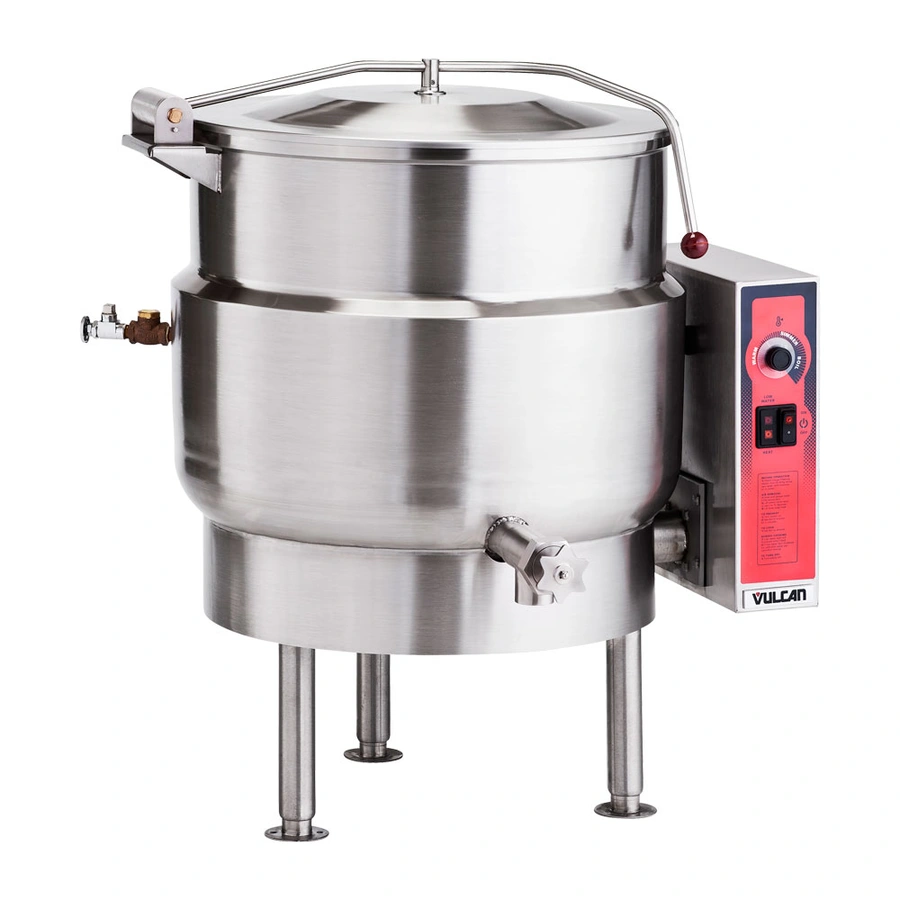

Vulcan K60EL 60 Gallon Stationary Kettle Electric, 480V
The Vulcan K60EL 60 Gallon Stationary Electric Kettle is a commercial steam-jacketed kettle designed for high-capacity food preparation in professional kitchen environments. It features a 60-gallon true working capacity and a 2/3 steam jacketed design, providing efficient heat transfer for consistent batch cooking. The kettle is constructed with a stainless steel exterior and a 316 stainless steel liner for food contact durability and commercial use. It operates on a 480V electric power supply.
This floor-mounted stationary kettle is designed with a stainless steel pedestal base for stable installation and includes a 2-inch tangent draw-off valve for controlled product discharge. It is equipped with a spring-assisted cover for ease of operation and a stainless steel control housing. The unit is designed for steam jacket operation up to 50 PSI and includes standard Vulcan kettle features intended for commercial foodservice production environments.
Key Features
- Electric self-contained 2/3 jacketed floor-mounted stationary steam kettle — available in 40-gallon (K40EL, 1,280 4-oz. servings) and 60-gallon (K60EL, 1,920 4-oz. servings) true working capacities
- 18 kW heating element as standard, with an optional upgrade to 24 kW (three-phase only) for faster heat-up in the highest-volume operations
- Ellipsoidal bottom kettle liner formed and fully welded from Type 316 stainless steel, with Type 304 stainless steel exterior for superior corrosion resistance and long service life
- Heavy 3/8" x 1" bar rim reinforces the kettle top for years of daily commercial use
- 50 PSI steam jacket rating for rapid, even heat distribution around the full 2/3 jacket surface
- Embossed gallon and liter markings inside the kettle for at-a-glance batch measurement
- Spring-assist hinged stainless steel cover with condensate ring and drop-down lift handle, mounted on a heavy-duty yolk-style pivot assembly with tie bar
- Two-inch compression tangent draw-off valve with perforated strainer for clean, controlled product discharge
- Kettle mounted on tubular stainless steel legs with flanged feet for stable placement
- Faucet bracket included standard for pantry faucet installation
- Water-resistant stainless steel control enclosure keeps electronics protected during daily washdown cleaning
- Full safety control package includes power switch, power "on" indicator light, solid state temperature control, vacuum/pressure gauge, pressure relief valve, low-water indicator light, and low-water shut-off
- Available in 208V or 240V, 1- or 3-phase electrical configurations; optional 480V/60Hz/3-phase power supply
- UL listed and UL Classified for sanitation in accordance with ANSI/NSF Standard #4; meets ASME code
- Optional 2" plug tangent draw-off valve or 3" compression tangent draw-off valve with perforated strainer available for faster discharge
- Optional security facility package with tamper-resistant fasteners, tack welds, and a stainless steel step-over draw-off valve with chain — designed for correctional foodservice environments
- One-year limited parts and labor warranty standard, with an optional second-year extended warranty
- Compatible accessories include clean-up kit (draw-off brush, clean-up brush, 40" paddle scraper), 48" stainless steel whip, non-perforated strainer, and lead-free pantry faucet or washdown hose options
