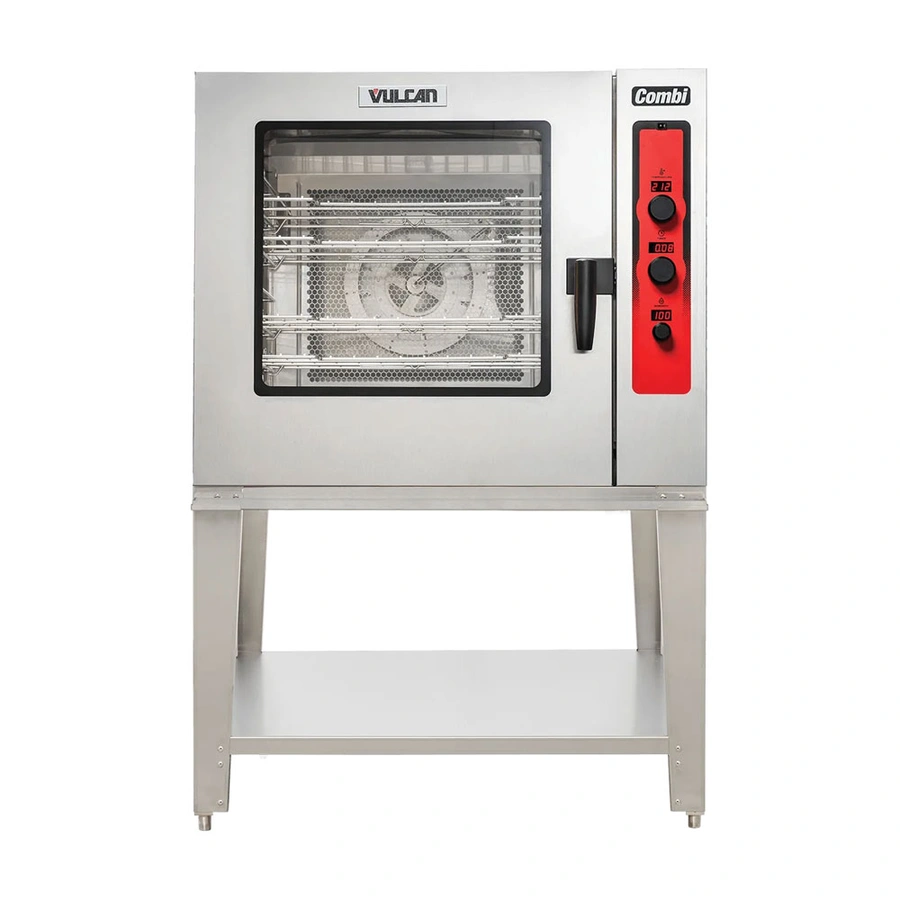

Vulcan ABC7E-480 Combi Oven/Steamer Electric
The Vulcan ABC Series Electric Boilerless Combi Oven Steamer delivers 11 cooking capabilities from a single piece of equipment — baking, steaming, roasting, air-frying, rethermalization, proofing, finishing, poaching, stewing, low temp, and defrosting — in a compact 7-pan full-size footprint designed for K-12 cafeterias, healthcare foodservice, correctional kitchens, and restaurants without a gas connection at the equipment line. Engineered and assembled in Louisville, Kentucky, the ABC7E replaces a full battery of separate cooking equipment with one unit built around Vulcan's signature three-knob interface: just temperature, time, and humidity. No modes, no menu trees, no touchscreen training. The patent-pending humidity control automatically adjusts after the temperature is set, so new staff can operate the combi confidently on day one.
The boilerless design creates steam directly at the point of cooking, optimizing capability and production while minimizing energy and water consumption compared to boiler-fed combis. An auto-reversing fan with electronic braking distributes heat and steam evenly across all seven rack positions for consistent results from batch to batch, and large LED displays for temperature (80°F–450°F), time (continuous up to 23:59), and humidity (0–100%) put every parameter in view during service. A visual recall of actual temperature and humidity confirms the cavity is holding target values, the timer automatically reloads for batch cooking after each cycle completes, and a flashing door light with audible alarm signals completed cycles across a noisy production kitchen. Machine diagnostics access through the controls or via USB for fast service support.
Four stainless steel Grab-N-Go Racks with a 15-1/2" x 3-1/4" cutout make pan removal fast even with gloved hands, and the unit accepts a maximum of seven racks for (7) 18" x 26" or (14) 12" x 20" pans per load. Construction is all stainless steel — cooking cavity, top, and sides — fully insulated, with a cool-to-the-touch heat-reflective tempered glass door and halogen door light behind heat-reflective inner glass. The ABC7E ships in six model configurations covering 208V, 240V, and 480V in single- or three-phase electrical service, and is backed by a one-year limited parts and labor warranty extended to two years for K-12 schools. ABC-P variants add a food probe and fan speed control for advanced production, and a full lineup of stands, stacking kits, water treatment systems, and additional Grab-N-Go Racks is available to configure the combi for your operation.
Key Features
- 7-pan full-size electric boilerless combi oven steamer with 11 cooking capabilities in one unit — baking, steaming, roasting, air-frying, rethermalization, proofing, finishing, poaching, stewing, low temp, and defrosting
- Engineered and assembled in Louisville, Kentucky, USA for consistent build quality and domestic parts availability
- Just three knobs — temperature, time, and humidity — with no modes to memorize; patent-pending humidity control automatically adjusts after the temperature is set for fast operator training
- Boilerless direct steam creation optimizes cooking capability while minimizing energy and water consumption compared to boiler-fed combis
- Auto-reversing fan with electronic braking distributes heat and steam evenly across all seven rack positions for consistent batch-to-batch results
- Large LED displays with visual recall of actual temperature and humidity — temperature range 80°F–450°F, timer continuous up to 23:59 (h:mm), humidity range 0–100%
- Automatic timer reload for uninterrupted batch cooking after each cycle completes
- Flashing door light and audible alarm signal completed cooking cycles across a busy kitchen
- Halogen door light behind heat-reflective inner glass provides clear visibility of product during cooking
- Four stainless steel Grab-N-Go Racks included with a 15-1/2" x 3-1/4" cutout for fast, gloved-hand pan removal
- Maximum capacity of seven racks for (7) 18" x 26" pans or (14) 12" x 20" pans per load
- Cool-to-the-touch, energy-efficient heat-reflective tempered glass door protects operators in busy production environments
- All stainless steel cavity, top, and sides — fully insulated for efficient heat retention and easy cleaning
- Machine diagnostics accessible through the controls or via USB for fast service support
- Six model configurations available: ABC7E-208, ABC7E-240, and ABC7E-480, each in standard and -P (probe + fan speed control) variants
- Field-wire electrical connection with 1.36" or 1.69" K.O. service entrance — no gas connection required
- Exterior dimensions: 35"H x 42.2"W x 43.5"D as a countertop unit; 63.1"H on a stand; 75.2"H stacked; 580 lb. machine weight
- Certified to ANSI/NSF Standard #4 for sanitation compliance
- One-year limited parts and labor warranty on standard installations; extended to two years for K-12 school customers
- Optional accessories include stainless steel stands, electric stacking kits, combi/convection stack kits, additional Grab-N-Go Racks, 12" x 20" fry basket, combi heat shield, spray hose and drip tray kits, and stainless steel water hoses
- Water treatment options range from carbon filter systems (CB15K, CB30K) to water softening (WS-40) and reverse osmosis (V3MRO-2) to protect the combi from mineral scale and extend service life
- Second-year extended limited parts and labor warranty contract available
