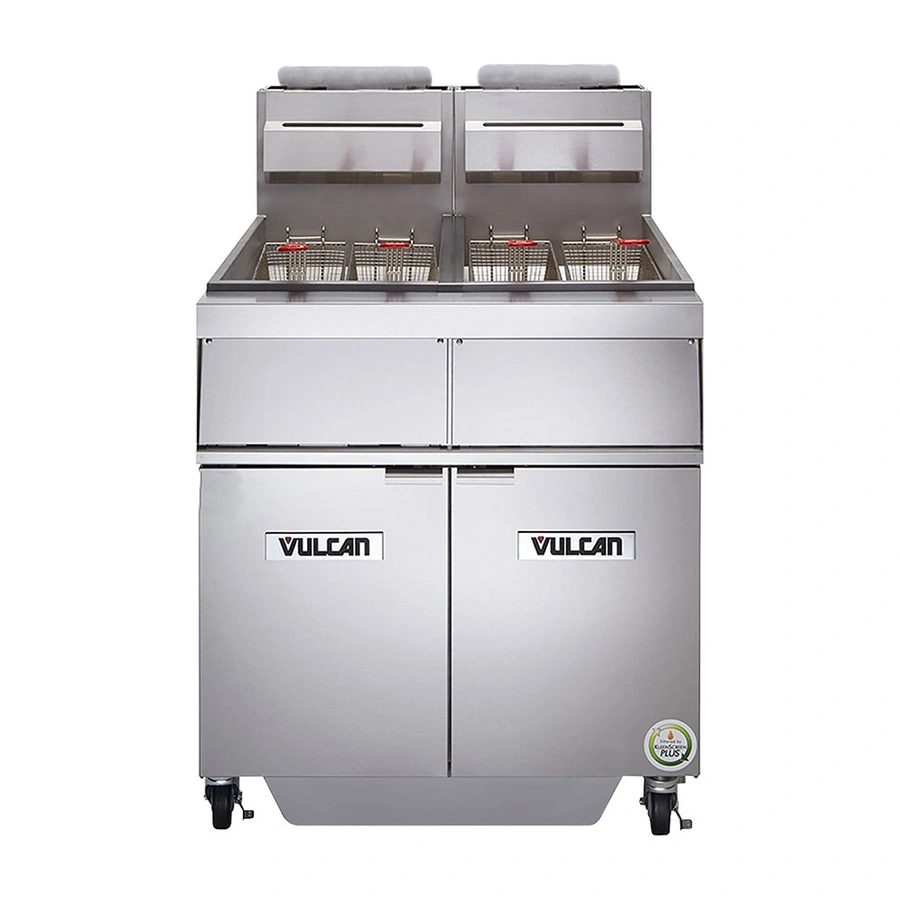

Vulcan 2GR45MF Gas Fryer
The Vulcan 2GR45MF Gas Fryer combines multiple GR-Series gas fryer cabinets with an integrated stainless steel filtration system to deliver high-volume frying capacity plus in-line oil filtration in a single connected footprint. Built for K-12 cafeterias, healthcare foodservice, correctional kitchens, catering commissaries, quick-service restaurants, and any operation running high-turnover fry stations, the battery configuration accommodates up to four GR45F cabinets on one shared filter system — centralizing oil filtration for the entire fry line and dramatically cutting the labor and downtime of individual fryer filtering.
A 1/3 HP motor and pump circulate hot frying compound through the filter vessel at 8 gallons per minute, activated with a one-touch push button. The 18-gauge stainless steel filter pan holds 70 pounds of frying compound, and a stainless steel mesh filter screen filters from both sides for improved throughput and easier cleaning. Optional KleenScreen PLUS® micro-filtration envelopes trap particulate down to 0.5 microns for premium oil life extension and cleaner fry results. A hands-free oil return line connection speeds cycle-through, and Vulcan-Hart's Boil Out ByPass™ system safely removes boil-out solution from the fry tank without contacting the drain manifold, filter pan, or motor and pump — dramatically simplifying deep-cleaning routines and protecting critical components.
Every battery ships standard on 6" casters (two locking, two non-locking) for stable placement and easy mobility during floor cleaning, and includes a tank brush and clean-out rod for daily maintenance. Powered by a standard 120V/60Hz/1-phase power supply through a NEMA 5-15P plug, the system connects to any standard outlet. CSA design certified and NSF listed for safety and sanitation compliance. Backed by a one-year limited parts and labor warranty plus Vulcan-Hart's industry-leading 10-year fry tank limited warranty. A high-temperature discard hose ships standard, and a full suite of factory-installed options is available — twin basket lifts, rear oil reclamation discard connection, and a Prison Security Package for correctional foodservice environments — letting you configure the battery precisely for your operation.
Key Features
- Fryer battery configuration with integrated built-in filter system — combines multiple GR-Series gas fryer cabinets into a single connected fry line with centralized oil filtration
- Filter system accommodates a maximum of four fryer cabinets
- 18-gauge stainless steel filter vessel and filter pan stand up to daily commercial use — 70 lb. frying compound capacity on GR45F
- 1/3 HP motor and pump circulate frying compound at 8.0 gallons per minute for fast, thorough filtration
- One-touch push button switch activates the filter system for tool-free daily operation
- Stainless steel mesh filter screen filters from two sides for improved throughput and easier cleaning
- Optional KleenScreen PLUS® micro-filtration envelopes trap particulate down to 0.5 microns for premium oil life extension
- Hands-free oil return line connection speeds cycle-through and reduces operator effort
- Boil Out ByPass™ system removes boil-out solution from the fry tank without contact of the drain manifold, filter pan, or motor and pump — protects critical components during deep cleaning
- Ships standard on 6" adjustable casters (two locking, two non-locking) for stable placement and easy mobility during floor cleaning
- Tank brush and clean-out rod included standard for daily maintenance
- High-temperature discard hose included standard for safe oil disposal
- 120V/60Hz/1-phase power supply through a NEMA 5-15P plug — connects to any standard outlet
- Available in natural gas or propane configurations — specify gas type and altitude (above 2,000 ft. for natural gas or 3,500 ft. for propane) at time of order
- CSA design certified and NSF listed for safety and sanitation compliance
- Optional factory-installed twin basket lifts (GR45F) or single and twin basket lifts (GR65F and GR85F) for automated cycle management
- Optional rear oil reclamation discard connection for direct connection to a shared waste oil system
- Optional Prison Security Package (factory installed) designed for correctional foodservice environments
- Optional stainless steel tank cover doubles as a work surface top
- Optional "Add-On" Frymate™ VX15 or VX21S dump station extends the battery footprint with a landing zone for finished product
- Optional flexible gas hose with quick disconnect for simplified connection and disconnection during cleaning
- Micro-filtration fabric conversion kits and 6-pack replacement envelopes available as accessories
- One-year limited parts and labor warranty standard, with an optional second-year extension
- Industry-leading 10-year fry tank limited warranty
