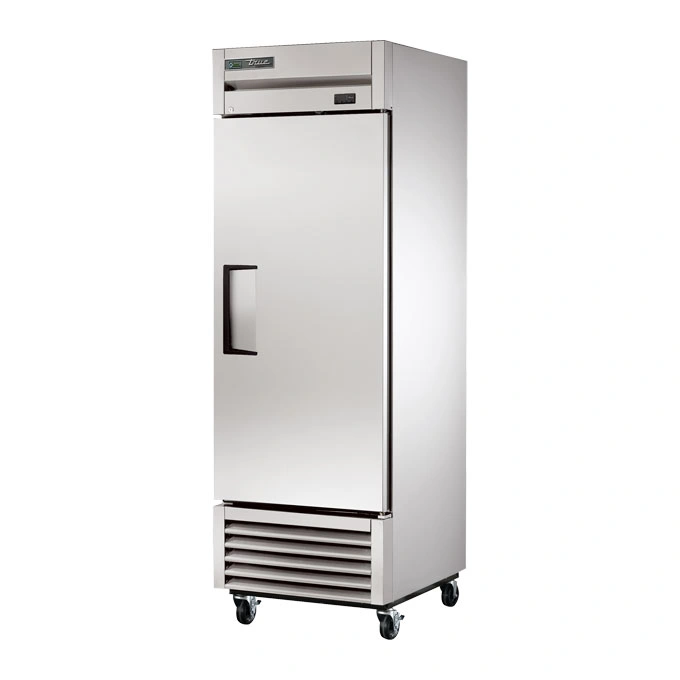

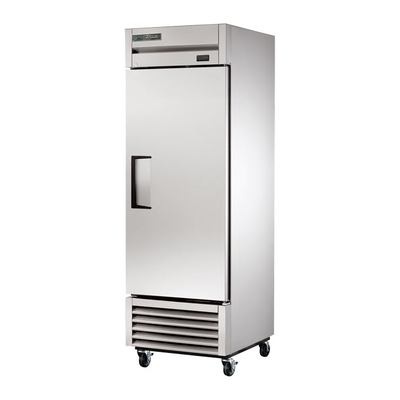

True T-23F-HC One Section Solid Door Reach-In Freezer
The True T-23F-HC One Section Solid Door Reach-In Freezer is a high-performance commercial freezing solution engineered for demanding foodservice environments. Designed with a factory-balanced, self-contained refrigeration system, this unit delivers consistently cold holding temperatures of -10°F (-23.3°C), making it ideal for storing frozen foods and ice cream with maximum food safety assurance. Built with True’s oversized refrigeration system and hydrocarbon R290 refrigerant, it offers exceptional energy efficiency while reducing environmental impact with zero ozone depletion potential and ultra-low global warming potential. Its compact one-section design with a single solid swing door makes it perfect for kitchens that require reliable cold storage without sacrificing valuable floor space.
Constructed with premium-grade materials, the True T-23F-HC features a stainless steel exterior, aluminum interior liner, and stainless steel floor with coved corners for easy cleaning and long-lasting durability. The bottom-mounted condensing unit ensures optimal performance in cooler, grease-free zones while allowing convenient storage space above the unit. Inside, three adjustable PVC-coated shelves provide flexible storage organization, supported by heavy-duty pilasters designed for strength and stability. The self-closing door includes a lifetime-guaranteed recessed handle, magnetic gasket seal, and positive closure system to maintain internal temperatures efficiently. With ECM fan motors, automatic defrost, and NSF compliance, this reach-in freezer delivers unmatched reliability for commercial kitchens.
Key Features
- Single solid swing door reach-in freezer with 23 cu. ft. capacity — ideal for K-12 cafeterias, healthcare foodservice, correctional kitchens, restaurants, and any operation storing frozen foods and ice cream
- Environmentally friendly R-290 hydrocarbon refrigerant — zero ozone depletion potential (ODP) and just 0.02 global warming potential (GWP) — meets current EPA SNAP guidelines
- Extra-large evaporator coil balanced with a higher horsepower compressor and large condenser maintains a consistent -10°F cabinet temperature for both frozen product storage and ice cream service
- Electronically commutated (ECM) evaporator and condenser fan motors operate at higher peak efficiencies, produce less heat, and improve energy consumption and motor reliability
- Bottom-mounted condensing unit runs in the coolest, most grease-free area of the kitchen — extends compressor life and frees the top of the cabinet for additional storage
- Automatic defrost system is time-initiated and temperature-terminated for the shortest possible defrost cycle and lower energy consumption
- Stainless steel front with anodized aluminum ends and a corrosion-resistant GalFan-coated steel back for a durable exterior finish
- Clear-coated aluminum interior liner with a stainless steel floor and coved corners for easy cleaning and sanitation
- Foamed-in-place high-density polyurethane insulation throughout cabinet and door — zero ODP and zero GWP
- Welded heavy-duty steel frame rail with black powder coating protects the base against corrosion
- 4" diameter stem casters with locks on the front set standard for easy mobility during cleaning
- Full-width stainless steel door with a clear aluminum interior liner matching the cabinet interior
- 12" long recessed foamed-in-place door handle with sheet metal interlock — lifetime guaranteed for permanent attachment
- Positive-seal self-closing door with lifetime-guaranteed hinges and a torsion-type closure system
- One-piece magnetic door gasket removes without tools for daily cleaning
- Door lock included standard for secure inventory management
- Three adjustable, heavy-duty PVC-coated wire shelves (22-7/8"L x 23-1/4"D) with four chrome-plated shelf clips per shelf; shelves adjust on 1/2" increments
- Safety-shielded interior lighting activated by a rocker switch mounted above the door
- Exterior digital temperature display for at-a-glance monitoring during service
- Epoxy-coated evaporator eliminates the potential for corrosion in high-humidity refrigeration cycles
- Rear airflow guards prevent product from blocking optimal airflow inside the cabinet
- NSF/ANSI Standard 7 compliant for open food product storage
- 1/2 HP compressor operates on 115V/60Hz/1-phase at 3.2 amps — ships pre-wired with a 9' cord and NEMA 5-15P plug for connection to any standard 15-amp dedicated outlet
- Cabinet dimensions: 27" W x 29-1/2" D x 78-3/8" H (excluding casters); crated weight 295 lb.
- Optional 220-240V/50Hz configuration available for international installations
- Optional accessories include 6" standard or 6" seismic/flanged legs, factory-installed alternate door hinging, novelty baskets, and additional shelves
