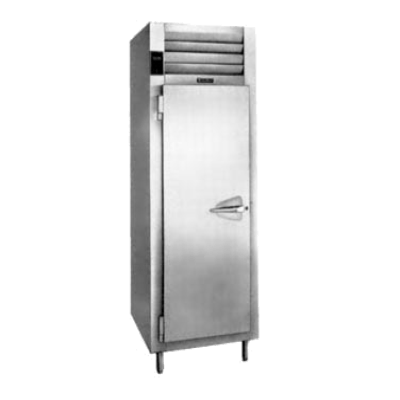

Traulsen RHT132WUT-FHS Spec-Line Reach-In Refrigerator
The Traulsen RHT132WUT-FHS is a one-section, full-height door reach-in refrigerator from Traulsen's top-of-the-line R-Series — built for operations that demand maximum storage capacity, precise temperature control, and long-term reliability. Fully clad in 20-gauge stainless steel with a #4 finish inside and out, it's engineered to withstand the rigors of a professional kitchen while maintaining a clean, polished appearance.
At the core of the RHT132WUT-FHS is Traulsen's INTELA-TRAUL® microprocessor control system, featuring a 3-digit LED display, Fahrenheit/Celsius capability, and audio/visual alarms for high/low cabinet temperature, door open, clean condenser, sensor failures, and power interruptions. The top-mounted, self-contained refrigeration system runs on R-134a with a thermostatic expansion valve, plenum-effect blower coil, and biased return air duct — keeping temperatures consistently in the 34–38°F range while blocking warm kitchen air from compromising performance. The 24.2 cu. ft. interior ships with three full-width adjustable wire shelves (up to 225 lbs per shelf) and accommodates a wide range of optional tray slide configurations.
Built-in details reinforce long-term usability: guaranteed-for-life cam-lift hinges and horizontal workflow door handles, magnetic snap-in EZ-Clean gaskets, a gasket-protecting metal door liner, auto-activated incandescent interior lighting, and a non-electric automatic condensate evaporator. Backed by a 3-year parts and labor warranty and a 5-year compressor warranty, this is a refrigerator built to deliver for the long haul. ENERGY STAR listed.
Key Features
- 24.2 cu. ft. net capacity; 1-section, full-height door configuration
- R-Series: 20-gauge stainless steel exterior and interior with #4 finish
- Overall dimensions: 29-7/8" W x 35" D x 83-1/4" H (on 6" legs)
- Net weight: 380 lbs
- 115V / 60 Hz / single-phase; 7.0 full load amps; NEMA 5-15P plug; 9' cord attached
- R-134a refrigerant; 2,240 BTU/HR (1/3 HP); standard operating temp 34–38°F
- INTELA-TRAUL® microprocessor control with 3-digit LED display and audio/visual alarms
- RS485 data port for remote monitoring compatibility (NAFEM Data Protocol, E-Control, and others)
- Balanced, self-contained top-mounted refrigeration with thermostatic expansion valve
- Biased return air duct for even temperature maintenance
- Scroll blower type evaporator fan; large high-humidity evaporator coil outside the food zone
- Three full-width adjustable wire shelves (225 lb per shelf load limit); 18.8 sq. ft. total shelf area
- Self-closing full-length stainless steel door with lock; stays open at 120°
- Standard door hinging: right (other hingings available)
- Guaranteed-for-life cam-lift hinges and horizontal workflow door handle
- Magnetic snap-in EZ-Clean door gasket; gasket-protecting metal door liner
- Controllable anti-condensate door perimeter heaters
- Automatic non-electric condensate evaporator
- 2" thick non-CFC foamed-in-place polyurethane insulation
- Set of four 6" adjustable stainless steel legs included
- ENERGY STAR listed; UL listed to U.S. and Canadian standards; NSF International listed
- 3-year parts and labor warranty; 5-year compressor warranty
