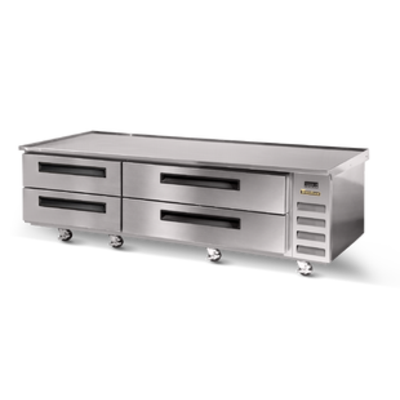

Traulsen CLES-84HT-ME 84" 4-Drawer Refrigerated Equipment Stand, Marine Edge Top
The Traulsen CLES-84HT-ME 84" 4-Drawer Refrigerated Equipment Stand, Marine Edge Top provides high-capacity refrigerated storage for commercial foodservice operations requiring organized ingredient access on the cookline. This 84"-wide refrigerated equipment stand features a self-contained, side-mounted refrigeration system using R-290 refrigerant and operates at 32-38°F (0-3.3°C) to maintain consistent, food-safe temperatures. The front-breathing refrigeration system allows zero-clearance installation, while a water-resistant microprocessor control with LED display provides convenient temperature management. The stainless steel construction includes a stainless steel top with a front marine edge and 90-degree side and rear edges. Measuring 84" wide, 34-1/8" deep, and 26-5/16" high, the unit supports a maximum top load capacity of 1,500 lb. (680.4 kg). Its refrigeration system provides 2,194 BTU/hr of cooling capacity and includes a high-humidity evaporator coil located outside the food zone.
Built for demanding foodservice applications, the Traulsen CLES-84HT-ME features four heavy-gauge stainless steel drawers with foamed-in-place recessed handles, stainless steel drawer slides, magnetic snap-in drawer gaskets, and easy drawer removal for cleaning. The CLES-84 configuration accommodates three full-size 6" deep pans per drawer in the right section and two full-size 6" deep pans per drawer in the left section, with pans supplied by others. The cabinet and drawers are insulated with an average of 2" thick high-density, non-CFC foamed-in-place polyurethane. Eight 4" plate casters mounted on an adjustable channel system provide positioning flexibility, while side, front, and rear access panels provide service and maintenance access. The unit operates at 115V, 60Hz, single-phase power with 1/5 HP and 4.5 amps and includes a 9' cord, plug, and plug retainer. A six-year parts and labor warranty plus an additional one-year compressor parts warranty is provided standard.
Key Features
- 84" 4-drawer refrigerated equipment stand
- Stainless steel top with front marine edge
- Stainless steel interior and exterior construction
- 1,500 lb. (680.4 kg) maximum top load capacity
- Self-contained, side-mounted refrigeration system
- R-290 refrigerant with a 2.3 oz. (65.2 g) charge
- 32-38°F (0-3.3°C) operating temperature range
- 2,194 BTU/hr refrigeration capacity
- Front-breathing system allows zero-clearance installation
- Water-resistant microprocessor control with LED display
- High-humidity evaporator coil located outside the food zone
- Non-electric condensate evaporator
- Four heavy-gauge stainless steel drawers with stainless steel drawer slides
- Foamed-in-place recessed drawer handles
- Magnetic, snap-in drawer gaskets
- Right section accommodates three full-size 6" deep pans per drawer
- Left section accommodates two full-size 6" deep pans per drawer
- Eight 4" plate casters on an adjustable channel system
- 9' cord, plug, and plug retainer included
- 115V/60Hz/1 electrical configuration with NEMA 5-15P
- Six-year parts and labor warranty plus one-year compressor parts warranty
