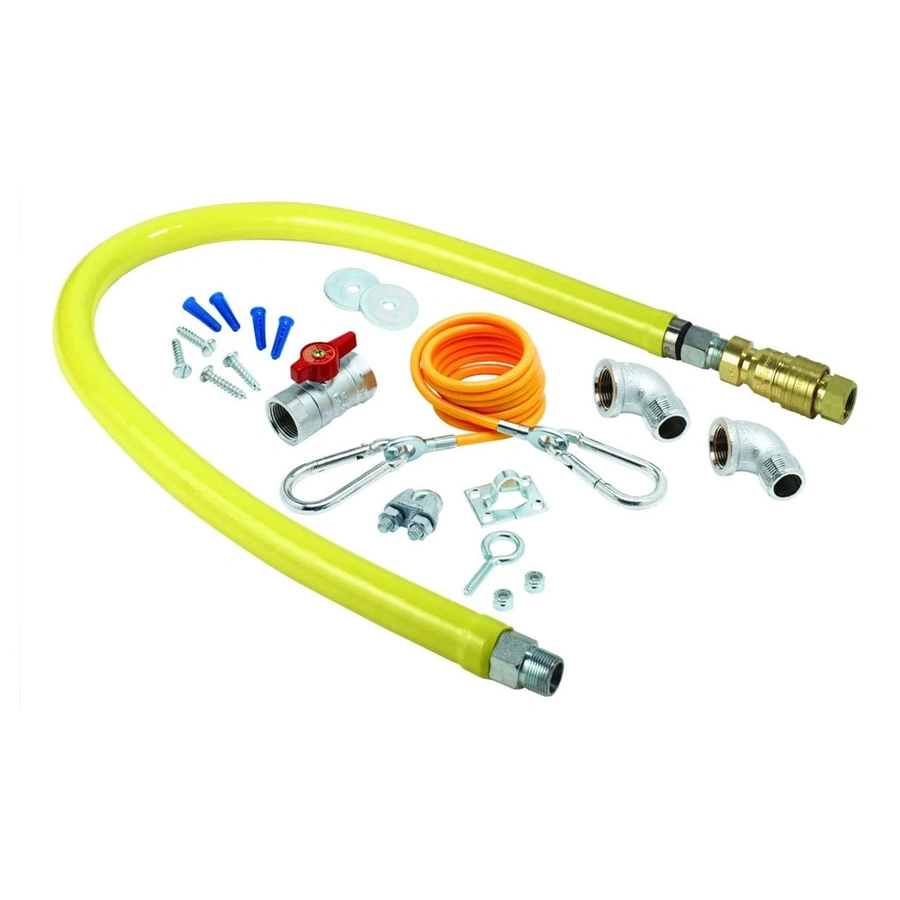

T&S Brass HG-4D-48K 48" In Gas Hose Connector Kit
The T&S Brass HG-4D-48K 48 In Gas Hose Connector Kit provides a practical connection solution for commercial gas appliances requiring a 48-inch coated gas appliance connector with quick-disconnect functionality. This gas hose features 3/4-inch NPT male freespin connections and a 3/4-inch NPT female quick-disconnect, providing a secure connection setup while allowing convenient disconnection. The included installation kit and street elbow support installation requirements, while the 360-degree rotatable hex nut rotates completely and freely for easier positioning and improved torsional relief.
Constructed with extruded coated stainless steel braids, the HG-4D-48K is designed to provide efficient, full gas flow and improved connector service life through optimum torsional relief. The quick-disconnect socket functions as a shut-off valve when the plug and socket are disconnected. This gas connector has a maximum pressure rating of 0.5 psi (0.03 bar), a maximum temperature rating of 350 F (176.67 C), and a gas hose capacity of 180,000 BTU per hour minimum. The connector is certified to ANSI Z21.69 / CSA 6.16 and NSF/ANSI 2, with compliance to ANSI Z21.41 / CSA 6.9 and NFPA 54, making it suited for specified commercial foodservice gas connection applications.
Key Features
- 48-inch coated gas appliance connector
- 3/4-inch NPT male freespin inlet and outlet
- 3/4-inch NPT female quick-disconnect
- 360-degree rotatable hex nut
- Extruded coated stainless steel braid construction
- Quick-disconnect socket acts as a shut-off valve when disconnected
- Includes installation kit and street elbow
- 180,000 BTU per hour minimum gas hose capacity
- Maximum pressure: 0.5 psi (0.03 bar)
- Maximum temperature: 350 F (176.67 C)
- Certified to ANSI Z21.69 / CSA 6.16 and NSF/ANSI 2
- Complies with ANSI Z21.41 / CSA 6.9 and NFPA 54
