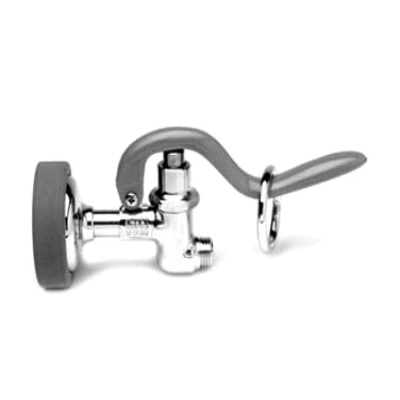

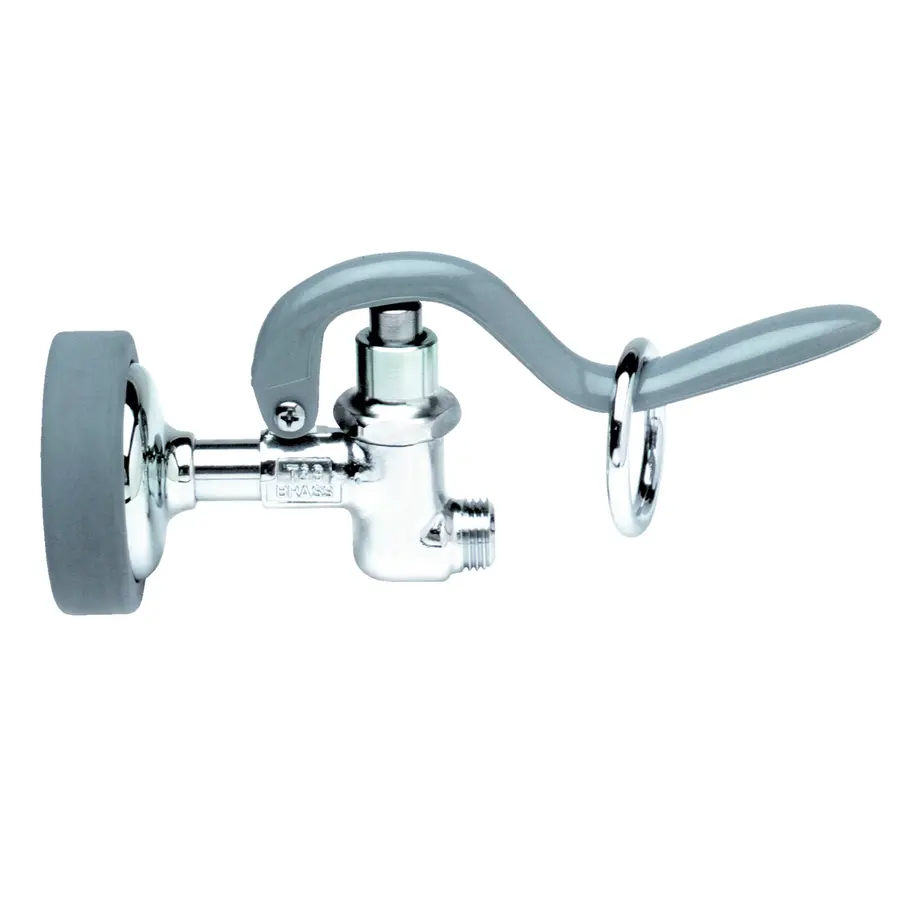

T&S Brass B-0107 Spray Valve Assembly with Hold Down Ring & Rubber Bumper
The T&S Brass B-0107 Spray Valve Assembly with Hold Down Ring & Rubber Bumper is designed for heavy-duty use in industrial kitchen applications requiring a controlled spray valve and durable construction. This 1.15 GPM (4.35 L/min) spray valve features a polished chrome-plated brass body with a rubber bumper and a 3/4-14 UN male inlet fitting. The assembly operates within a pressure range of 20 to 125 psi (1.38 to 8.62 bar) and a temperature range of 40°F to 140°F (4.44°C to 60°C), making it suitable for commercial kitchen spray applications within these specified limits.
The B-0107 spray valve includes a hold down ring and is designed to shut off when the handle is released. Its polished chrome finish provides the specified surface finish, while the brass construction and rubber bumper provide the components identified for this assembly. The spray valve is certified to ASME A112.18.1 / CSA B125.1, NSF/ANSI 372 for lead content, and NSF/ANSI/CAN 61 Q≤1, and it is listed with California Energy Commission CEC compliance. The assembly is also identified as 2019 DOE PRSV Class II compliant. With its defined flow rate, inlet connection, operating range, and certifications, this T&S Brass spray valve assembly is suited for specified commercial and industrial kitchen installations.
Key Features
- 1.15 GPM (4.35 L/min) spray valve
- Polished chrome-plated brass body with rubber bumper
- 3/4-14 UN male inlet fitting
- Hold down ring
- Shuts off when the handle is released
- 20 to 125 psi (1.38 to 8.62 bar) pressure range
- 40°F to 140°F (4.44°C to 60°C) temperature range
- Designed for heavy-duty use in industrial kitchens
- ASME A112.18.1 / CSA B125.1 certified
- California Energy Commission CEC compliant
- NSF/ANSI 372 and NSF/ANSI/CAN 61 Q≤1 certified
- 2019 DOE PRSV Class II compliant
