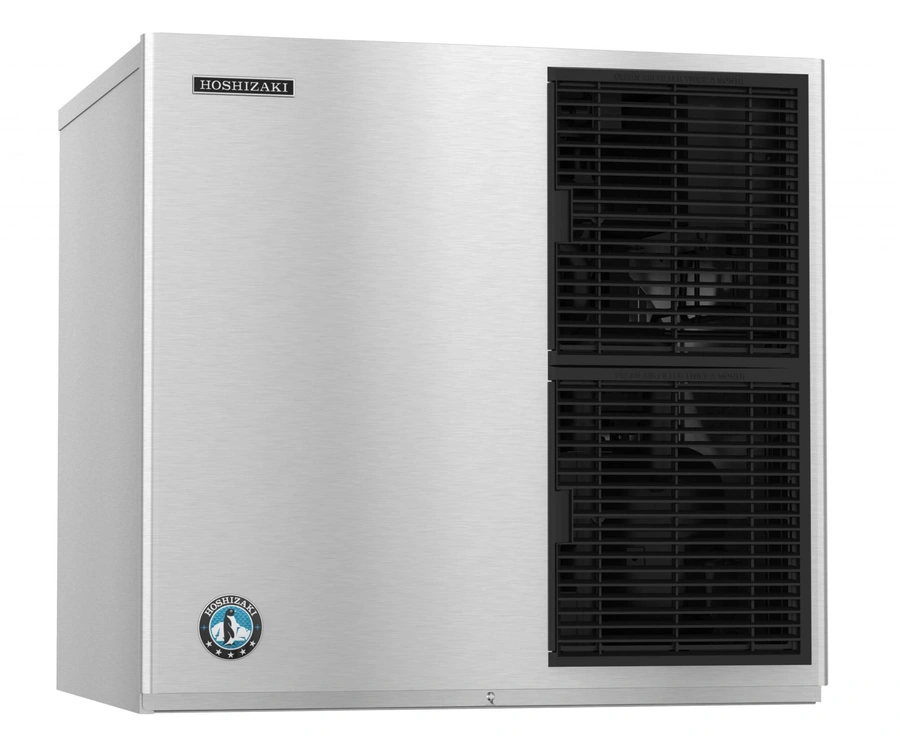

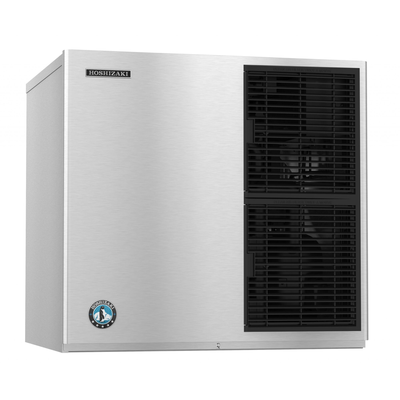

Hoshizaki KMD-860MAJ Modular Ice Machine Head, Air-Cooled
The Hoshizaki KMD-860MAJ Crescent® Cuber Icemaker is an air-cooled, modular commercial ice machine designed for high-volume foodservice, hospitality, self-service, fast food, and employee break room applications. Producing up to 855 lbs. of crescent-shaped ice per 24 hours, this commercial ice maker provides a reliable supply of ice for busy operations. Its KM Edge™ design incorporates a dual-sided stainless steel evaporator, while the durable stainless steel exterior is suited for demanding commercial environments. Measuring 30" W x 24-5/8" D x 28" H, the KMD-860MAJ can be mounted side-by-side with another unit for increased ice production. Compatible bins and dispensers are sold separately.
Designed for efficient operation and simplified maintenance, the Hoshizaki KMD-860MAJ features CycleSaver™ design and an EverCheck™ alert system. This air-cooled modular ice maker operates with R-404A refrigerant and requires a single-phase 208-230V/60/1, 3-wire electrical connection including ground. The unit must be hardwired at the installation site, with no cord or plug included. It operates within an ambient temperature range of 45–100°F, water temperature range of 45–90°F, and water pressure range of 10–113 psig. The KMD-860MAJ is discontinued and replaced by the KM-830MAK2.
Key Features
- Produces up to 855 lbs. of crescent-shaped ice per 24 hours
- Air-cooled modular ice machine
- KM Edge™ dual-sided stainless steel evaporator
- Durable stainless steel exterior
- 30" W x 24-5/8" D x 28" H
- Can be mounted side-by-side with another unit for 2x ice production
- CycleSaver™ design
- EverCheck™ alert system
- R-404A refrigerant, 2 lbs. 6.8 oz. / 1,100 g
- Heat rejection: 13,100 BTU/hr
- Ambient temperature range: 45–100°F
- Water temperature range: 45–90°F
- Water pressure: 10–113 psig
- Voltage range: 187–253V
- 9.9 amps; 20 Amp maximum fuse/HACR breaker
- 5.16 kWh per 100 lbs. at 90/70
- Single phase, 208-230V/60/1, 3 wire, including ground
- Must be hardwired at the installation site; no cord or plug included
- Three-year parts and labor warranty on entire machine
- Five-year parts warranty on compressor and air-cooled condenser coil
- Discontinued; replaced by KM-830MAK2
