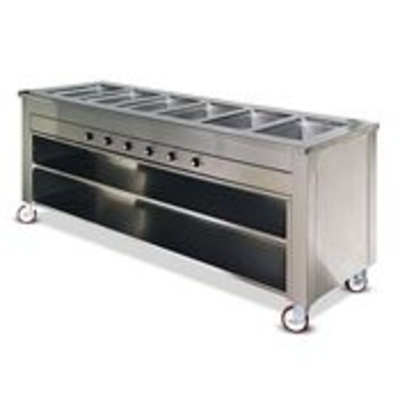

    • Dinex 5-Well Hot Food Counter w/Heat-In-Base

    Dinex DineXpress Hot Food Counters can easily be linked with other Dinex DineXpress Counters for a custom serving line! Dinex DineXpress Hot Food Counters will give your buffet service a sleek, contemporary look.

    • Dinex DineXpress Hot Food Counter w/Heat-In-Base
    • 5-Well size
    • Number of doors: 3
    • Construction:
      • 16-gauge 300 series stainless steel top with 1-1/2" turn down on all sides
      • Front and end panels of 18-gauge stainless steel
      • Legs of 14-gauge stainless steel
      • 5" diameter, heavy duty non-marking swivel casters, 2 are fitted with brakes
    • The DineXpress Hot Food unit is a must for the professional look of any line up and will help you present your food
    • The versatile modular design allows you to custom design either a cafeteria or a buffet line-up
    • Compatible and will interlock with other DineXpress units
    • Heated Wells:
      • Individual wells are deep drawn stainless steel 12" x 20" x 6-1/2" deep with covered corners
      • Each well is thermostatically controlled and temperature adjustment knobs are given
      • A signal light indicates each well's temperature cycling
      • Wells are insulated with high density fiberglass
      • Additional non-conductive heat barrier is also provided to seal and isolate heat wells from top surface
    • Heating System:
      • Each well is heated by means of a 208v/1000 watt heating system
      • Equipped with easy to service slide out heat elements
      • Heat-in Base units have a rack with 2 3/4" spacing giving 5-pan capacity per door
      • 1-door base units are heated by a 350 watt silicone heater pad
      • 2-door base units are heated by a 550 watt silicone heater pad
      • Each base unit is individually controlled
      • Each unit is provided with a 10' cord and plug
    • Options:
      • Manifold drains
      • Drop down work shelf
      • Tray slides
      • Formica laminate panels
      • Food protectors guards
      • Duplex outlets
      • Acrylic tops
      • Engineered stone tops
      • Skirting
      • Legs in lieu of casters
    • NSF listed, UL classified
    • Warranty: One year parts and labor
    • Dimensions:
      • Height: 36" (91cm)
      • Width: 30" (76 cm)
      • Length: 77" (196 cm)
