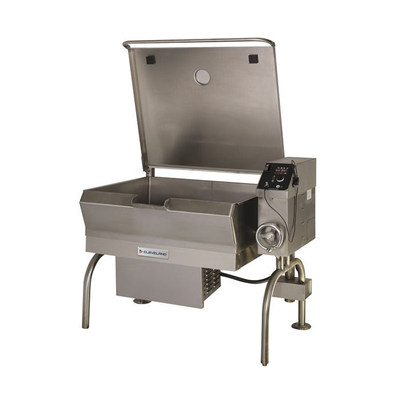

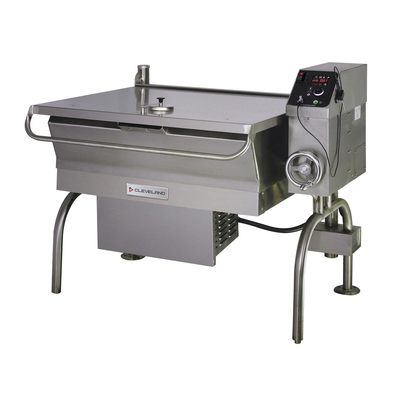

Cleveland SGL40T1 Gas 40 Gallon Tilt Skillet
The Cleveland SEL40T1 Electric PowerPan 40 Gallon Tilt Skillet is a versatile and reliable kitchen equipment that is perfect for high-volume cooking in commercial kitchens. This electric tilt skillet is designed to provide exceptional cooking performance and efficiency to meet the demands of any busy kitchen. It has a 40-gallon capacity and features a 10-gauge stainless steel pan with a polished finish that is durable and easy to clean.
The SEL40T1 Electric PowerPan has a precise temperature control system that allows for accurate and consistent heating. It also features a heating element that is fully insulated to prevent heat loss and improve energy efficiency. The tilting mechanism is smooth and effortless, making it easy to transfer food from the skillet to containers or serving dishes.
This electric tilt skillet has a compact and space-saving design, making it ideal for kitchens with limited space. It also features a splash-proof design that ensures easy cleaning and maintenance. The unit is NSF listed, ensuring that it meets the highest standards for food safety and sanitation.
The SEL40T1 Electric PowerPan is perfect for cooking a variety of dishes, including soups, stews, sauces, and stir-fry dishes. It can also be used for grilling, sautéing, and browning meats and vegetables. The temperature range is from 100°F to 425°F, providing versatility for different cooking methods.
The electric tilt skillet is designed for easy operation and maintenance. It features a removable power control box for easy access and maintenance. The unit also has a removable strainer that collects food debris, making cleaning easier and more efficient.
In summary, the Cleveland SEL40T1 Electric PowerPan 40 Gallon Tilt Skillet is a high-quality and versatile kitchen equipment that is perfect for commercial kitchens. Its durable construction, precise temperature control, and easy maintenance make it an excellent choice for any busy kitchen.
The Cleveland SGL-40-T1 Gas Tilting Skillet-PowerPan Series has a capacity of 40 gallons / 150 Liters. It has Exclusive Ultra Efficient Power Burner (Forced-Air) Gas Combustion System with Automatic Ignition. Exclusive Dual Power Settings: 90,000 and 125,000 BTU for 30 gallons, 160,000 BTU and 200,000 BTU for 40 gallons provides superior heat-up and recovery. Open base design for easy cleaning and maintenance. 5/8" Stainless Steel Bead Blasted cooking surface prevents warping and keeps food from sticking.
Key Features
- Durable 12 gauge, 304 stainless steel pan construction
- 5/8" (16mm) mild steel clad bottom plus 1/16" (1.6mm) stainless steel plate for even temperature distribution
- Low 35" rim height for easy operation and cleaning
- Splash-proof controls and construction
- Supplied with cord and plug for 115-volt controls
- Easy-to-turn manual hand tilt with enclosed permanently lubricated gearbox
- Optional power tilt with manual override available
- Gallon/liter markings and vented spring-assist cover standard
- Available with optional 2" tangent draw-off valve
- 10° cooking feature: tilt unit up to 10° without turning power off
- Adjustable electronic thermostat controls temperature from 100° to 450°F
- Electronic spark ignition system standard
- Spring-assist cover with full-width handle and vent
- Exclusive ultra-efficient forced-air gas combustion system with automatic ignition
- Exclusive dual power settings: 160,000 and 200,000 BTU (40 gallon)
- Open base design for easy cleaning and maintenance
- 5/8" stainless steel bead-blasted cooking surface prevents warping and keeps food from sticking
- Capacity: 40 gallons / 150 liters; 1,280 servings at 4 oz. serving size
- Overall dimensions (L x W x H): 41" (1042mm) x 51-1/8" (1299mm) x 39" (991mm); rim height 35"
- Electrical supply: 120V, 1 phase, 10 amps, 60 Hz
- Gas supply piping: 3/4" NPT; natural gas or propane (LP)
- Water column: 3.5" W.C. (NAT), 10" W.C. (LP)
- BTU per cu. ft.: 1,025 (NAT), 2,500 (LP)
- Supply pressure: 5" W.C. min (NAT), 11" W.C. min (LP)
- BTU rating: 200,000 per hour
- Clearance — Right: 3" (77mm); Left: 0"; Rear: 0" (non-combustible wall), 3-1/2" (89mm) (combustible wall)
- Approximate shipping weight: 560 lbs. (255 kg)
- Recommended floor slope: 1" (26mm) in 4' (1220mm)
- Floor drain: minimum 4" (102mm); recommended 6" (153mm)
- Pipe drain recommended: minimum valve size plus 1" (26mm)
- Optional 2" TD valve: increase floor drain grate size to 24" x 20" (610mm x 508mm)
- Approvals: AGA, CGA, NSF
- Options and accessories: Power Tilt with Manual Override (PT2); 2" Tangent Draw-Off Valve (TD2SK); Double or Single Pantry Faucet (SPS14, DPS14) with faucet mounting bracket; Faucet Bracket (FBKT1); Pan Carriers (PCS); Vegetable Steamer Baskets (VS); Hot & Cold Water Pre-Rinse Spray Head with Hose (PRS-S); Poaching Pans (PP); Interchangeable Voltages (VOSK-4, 240V, 50 Hz, 1 phase); Protective Control Cover (CP-PCB-T1); Casters — 2 swivel, 2 locking (CST1)
