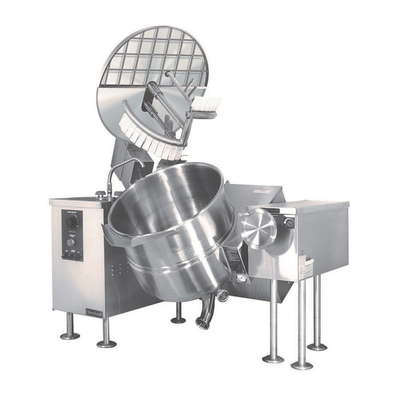

Cleveland MKGL60T Gas Tilting Mixer Kettle

The Cleveland MKGL60T Gas Tilting Mixer Kettle is a 60-gallon commercial cooking kettle designed for high-volume food preparation requiring controlled heating, thorough mixing, and efficient product handling. This gas-fired, 2/3 steam-jacketed tilting kettle features a 50 PSI steam jacket rating and a 190M BTU high-efficiency power burner heating system with automatic glow-type ignition. An insulated heat exchanger supports the heating system, while precise solid-state temperature control provides adjustable cooking conditions. Solid-state low-water safety controls and LED indicators for the heat cycle and low-water warning provide operational monitoring. The permanently filled steam jacket uses treated distilled water, and a front-mounted combination pressure-vacuum gauge provides convenient pressure monitoring.

The MKGL60T features a horizontal agitator powered by a 3 HP motor drive with variable speed control from 5 to 20 RPM. Spring-loaded Teflon scraper blades contact the heated surface area, while internal mixing fins support consistent product movement. The agitator assembly can be removed without tools for cleaning and maintenance. A flush-mounted, removable temperature probe provides direct temperature measurement, while the spring-assisted hinged stainless steel cover provides convenient kettle access. The 3-inch air-operated flush-mounted piston draw-off valve provides variable discharge control and requires an air compressor. Type 316 stainless steel food-contact surfaces, a heavy-duty welded rim bar, and a power tilt mechanism with a case-hardened self-locking worm and segment gear complete this commercial mixer kettle.

Key Features

• 60-gallon gas-fired tilting mixer kettle with horizontal agitator
• 2/3 steam-jacketed construction with 50 PSI jacket rating and safety valve
• 190M BTU high-efficiency power burner with automatic glow-type ignition
• 3 HP horizontal agitator drive with variable 5–20 RPM speed control
• Spring-loaded Teflon scraper blades and internal mixing fins
• Solid-state temperature and low-water safety controls with LED indicators
• 3-inch air-operated flush-mounted piston draw-off valve with variable control
• Power tilt mechanism with case-hardened self-locking worm and segment gear
