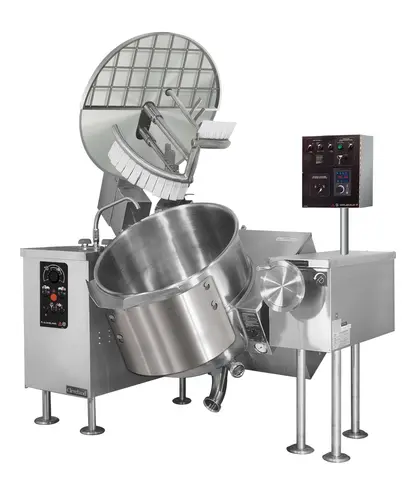

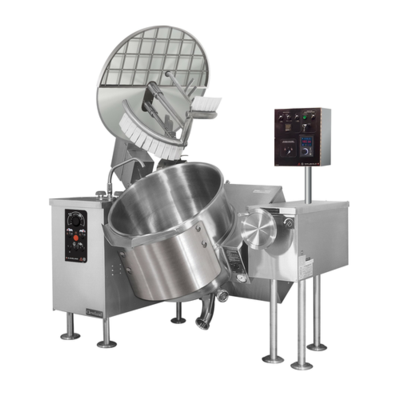

Cleveland MKGL40T Gas Tilting Mixer Kettle

The Cleveland MKGL40T Gas Tilting Mixer Kettle is a 40-gallon commercial cooking system designed for high-volume food preparation requiring controlled heating, mixing, and convenient product discharge. This gas-fired, 2/3 steam-jacketed kettle features a 50 PSI steam jacket rating and a high-efficiency 190M BTU power burner heating system with automatic glow-type ignition. An insulated heat exchanger supports the heating system, while variable temperature control allows operators to adjust cooking conditions for different preparation requirements. Solid-state controls include LED indicators for the heat cycle and low-water warning, and the permanently filled steam jacket uses treated distilled water without routine venting or refilling. A front-mounted combination pressure-vacuum gauge provides pressure monitoring during operation.

The MKGL40T incorporates a horizontal agitator powered by a 3 HP motor drive with variable mixer speed control from 5 to 20 RPM. Spring-loaded Teflon scraper blades are designed to scrape the heated surface area, while internal mixing fins promote uniform product movement. The agitator assembly is removable without tools for convenient cleaning and maintenance. A flush-mounted temperature probe provides direct temperature monitoring, and the spring-assisted hinged stainless steel cover provides access to the kettle interior. The 3-inch diameter air-operated flush-mounted piston draw-off valve provides variable discharge control and requires an air compressor. Type 316 stainless steel food-contact surfaces, a heavy-duty welded rim bar, and a power tilt mechanism with a self-locking worm and segment gear complete the commercial mixer kettle design.

Key Features

• 40-gallon gas-fired tilting mixer kettle with horizontal agitator
• 2/3 steam-jacketed construction with 50 PSI steam jacket rating
• 190M BTU high-efficiency power burner with automatic glow-type ignition
• 3 HP horizontal agitator drive with variable 5–20 RPM mixer speed control
• Spring-loaded Teflon scraper blades and internal mixing fins
• Solid-state temperature and low-water safety controls with LED indicators
• 3-inch air-operated flush-mounted piston draw-off valve with variable control
• Power tilt mechanism with self-locking worm and segment gear
