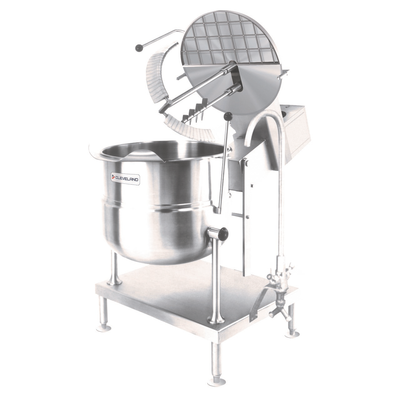

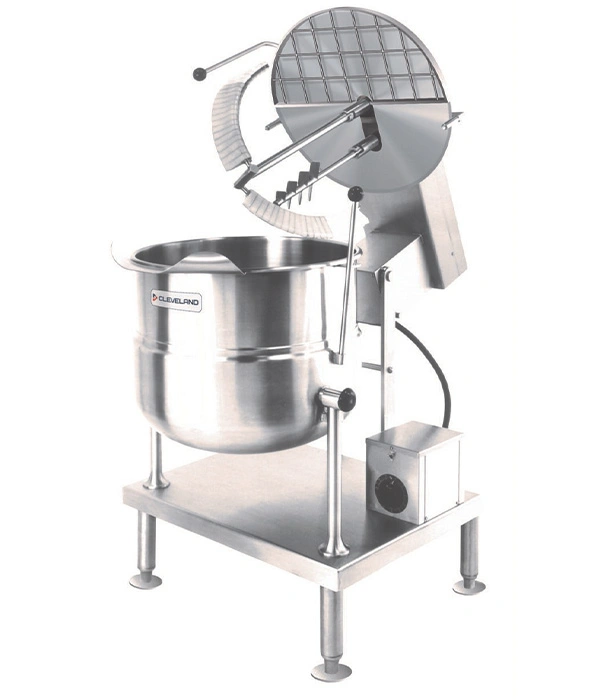

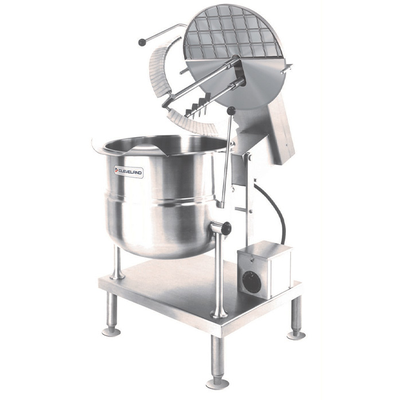

Cleveland MKDT20T Direct Steam Mixer Kettle, Tilting
The Cleveland MKDT20T Direct Steam Mixer Kettle, Tilting is a table-type commercial mixer kettle designed for high-speed cooking and controlled mixing applications. With a 20-gallon capacity and a 50 PSI (3.5 Bar) steam jacket rating, this direct steam kettle is built for foodservice operations requiring efficient steam cooking and integrated mixing. A factory-installed steam control kit and steam control valve built into the trunnion provide the specified steam-control configuration. The tilting design supports product transfer, while the large pouring lip and reinforced rolled rim add practical features for routine commercial use. The kettle and exterior surfaces are constructed from Type 304 stainless steel with a #4 finish for an easy-to-clean working surface.
The Cleveland MKDT20T provides infinitely variable mixing speeds, with the scraper operating from 0 to 70 RPM and the agitator from 0 to 210 RPM. A 3/4 HP DC timing belt drive powers the mixing system, while the bayonet-mounted agitator and scraper feature removable nylon blades that can be removed without tools. A safety device prevents high-speed starts, and mixing stops when the bridge is lifted. The enclosed, balanced 10-gauge stainless steel mixer bridge includes gallon markers on the scraper shaft. The interchangeable tilt handle allows left- or right-side operation, while the standard 120-volt, 60 Hz, single-phase, 3-wire electrical configuration supports the specified installation requirements. The MKDT20T is also specified with a hot-and-cold or cold-only water faucet option requiring the appropriate mounting bracket.
Key Features
- 20-gallon table-type direct steam mixer kettle with tilting design
- 50 PSI (3.5 Bar) steam jacket rating
- Factory-installed steam control kit with valve built into the trunnion
- Infinitely variable mixing with 0–70 RPM scraper and 0–210 RPM agitator speeds
- 3/4 HP DC timing belt drive with bayonet-mounted agitator and scraper
- Removable nylon blades and tool-free agitator and scraper removal
- Safety system prevents high-speed starts and stops mixing when the bridge is lifted
- Type 304 stainless steel construction with #4 finish and reinforced rolled rim
