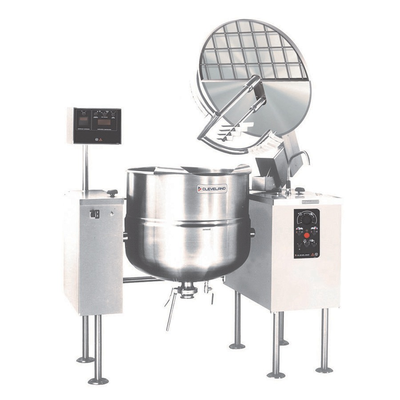

Cleveland MKDL60T Direct Steam Kettle/Mixer
The Cleveland MKDL60T Direct Steam Kettle/Mixer is a 60-gallon commercial cook-and-chill mixer kettle designed for high-volume preparation and controlled batch processing. This floor-model tilting kettle uses 2/3 steam-jacketed construction and direct steam heating to support efficient cooking of soups, sauces, gravies, fillings, and other prepared foods. Its 316 stainless steel kettle liner is designed for applications involving high-acid products, while stainless steel consoles enclose the plumbing, electrical components, and hydraulic systems. The hydraulic-powered agitator, scraper, and bridge lift provide integrated mixing and handling, making the MKDL60T suitable for production environments requiring consistent batch movement and efficient discharge.
The Sweep/Fold mixing system incorporates removable scraper blades and variable scraper speed with an adjustable ratio between scraper and agitator movement. A safety device prevents high-speed starts and stops mixing when the bridge is lifted, helping support controlled operation. The kettle includes an air-operated 3-inch flush piston discharge valve with console-mounted variable control, a removable flow diverter, and a two-piece lift-off cover. Operators can also use the automatic water meter, hot and cold water faucet, and automatic water cooling system for batch preparation and cooling processes. The MKDL60T provides a 60-gallon working capacity and a 50 PSI steam jacket rating for the 40-, 60-, and 80-gallon models, combining direct steam cooking, hydraulic mixing, tilting, and product handling in one commercial kettle system.
Key Features
- 60-gallon working capacity with 2/3 steam-jacketed direct steam heating
- Sweep/Fold agitator with hydraulic-powered scraper and bridge lift
- 316 stainless steel kettle liner for high-acid food products
- Variable scraper speed with adjustable scraper-to-agitator ratio
- 50 PSI steam jacket rating for the 60-gallon model
- Air-operated 3-inch flush piston discharge valve with variable control
- Automatic water meter with hot and cold water faucet
- Automatic water cooling system with two-piece lift-off cover
