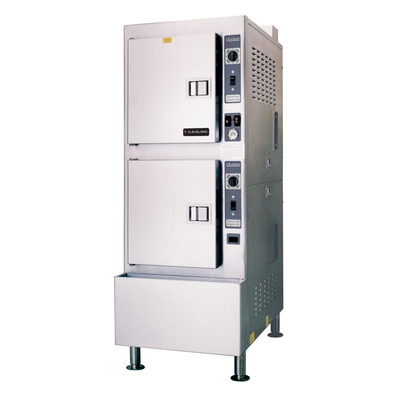

Cleveland 24CDP10: SteamCraft Ultra 10 Direct Steam
The Cleveland 24CDP10 SteamCraft Ultra 10 is a two-compartment direct steam floor model steamer designed for high-volume commercial foodservice cooking. This 24-inch-wide pressureless convection steamer provides two cooking compartments, each accommodating up to five 12" x 20" x 2 1/2" steam table pans. Its direct steam operation uses an exclusive brass steam jet distribution system to produce high-velocity convection steam without fans. Coved corners promote even heat distribution and simplify cleaning, while creased top and bottom surfaces enhance drainage. A cold-water condenser in each compartment helps maintain dry steam, and removable stainless steel slide racks provide convenient pan support.
The SteamCraft Ultra 10 features Type 430 stainless steel exterior and cooking compartments, with durable 14-gauge stainless steel construction used for the compartment doors, cavities, and front. Left-hand hinged compartment doors place the controls on the right and incorporate a free-floating inner door, reversible gasket, and stainless steel slam/latch mechanism. Each compartment includes a 60-minute electro-mechanical timer and manual operation switch, audible cooking-completion signal, and separate power switch. The unit also features a compensating thermostat, manual bypass operation mode, condensate drip trough beneath the lower compartment door, and a moisture separator for incoming steam. A single cold-water connection is required, with no hot-water connection needed. Standard controls operate at 115 volts, 60 Hz, single phase.
Key Features
- Two-compartment direct steam floor model steamer
- Pressureless convection cooking with 24" wide design
- Five 12" x 20" x 2 1/2" steam table pans per compartment
- Exclusive brass steam jets produce high-velocity convection without fans
- Cold-water condenser in each compartment helps maintain dry steam
- Type 430 stainless steel exterior and cooking compartments
- 14-gauge stainless steel construction for doors, cavities, and front
- Coved-corner cooking compartments promote even steam distribution
- Removable stainless steel slide racks
- 60-minute electro-mechanical timer and manual operation switch per compartment
- Compensating thermostat and manual bypass operation mode
- Left-hand hinged compartment doors with controls on the right
- Condensate drip trough under the lower compartment door
- Moisture separator for incoming steam
- Single cold-water connection; no hot water required
- Standard 115V, 60 Hz, single-phase controls
- 24" W x 33" D x 65.5" H; 469 lb
