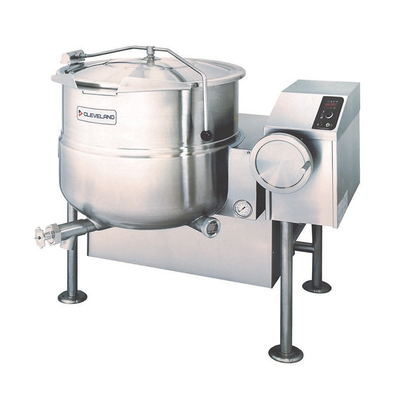

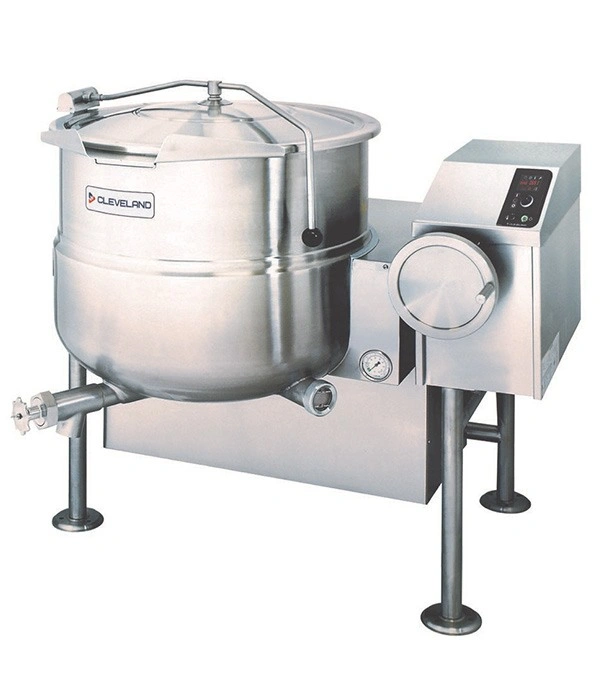

Cleveland KGL40T 40 Gallon Gas Steam Kettle, Tilting
The Cleveland KGL40T 40 Gallon Gas Steam Kettle is a commercial tilting kettle designed for high-volume cooking applications that require controlled, consistent heating. Its 2/3 steam-jacketed design uses a high-efficiency Power Burner Heating System with an insulated heat exchanger to support fast heat-up and recovery. The kettle is constructed from Type 304 stainless steel with a #4 finish on the kettle and supports, providing a durable surface suited to demanding foodservice environments. A 50 psi steam jacket rating supports higher cooking temperatures, while the permanently filled treated-water jacket eliminates the need for routine venting or refilling.
Built for precise batch cooking, the Cleveland KGL40T features solid-state controls, infinite variable temperature control, and a control system designed to maintain temperature with less than 1°C variance. LED indicators provide visual notification of the heat cycle and low-water warning, while automatic ignition simplifies operation. The roller-bearing tilt mechanism uses a case-hardened self-locking worm and segment gear for controlled kettle tilting. Support legs include level-adjustable feet and are flanged for floor bolting. A front-mounted combination pressure/vacuum gauge provides jacket pressure information, and the standard electrical configuration is 115 volts, 60 Hz, single-phase with a cord and plug. The kettle is configured for natural gas operation.
Key Features
- 40 gallon commercial gas-fired, 2/3 steam-jacketed tilting kettle
- Type 304 stainless steel construction with #4 finish on kettle and supports
- High-efficiency Power Burner Heating System with 62% to 65% efficiency
- 50 psi steam jacket rating for higher cooking temperatures
- Insulated heat exchanger for efficient heating performance
- Fast heat-up and recovery with 140,000 BTU firing rate
- Infinite variable temperature control with less than 1°C variance
- Solid-state temperature and low-water safety controls
- LED heat-cycle and low-water warning indicators
- Automatic ignition system for convenient operation
- Roller-bearing tilt mechanism with self-locking worm and segment gear
- Level-adjustable support legs flanged for floor bolting
- Front-mounted combination pressure/vacuum gauge
- 115V, 60 Hz, single-phase electrical configuration with cord and plug
- Standard configuration for natural gas operation
