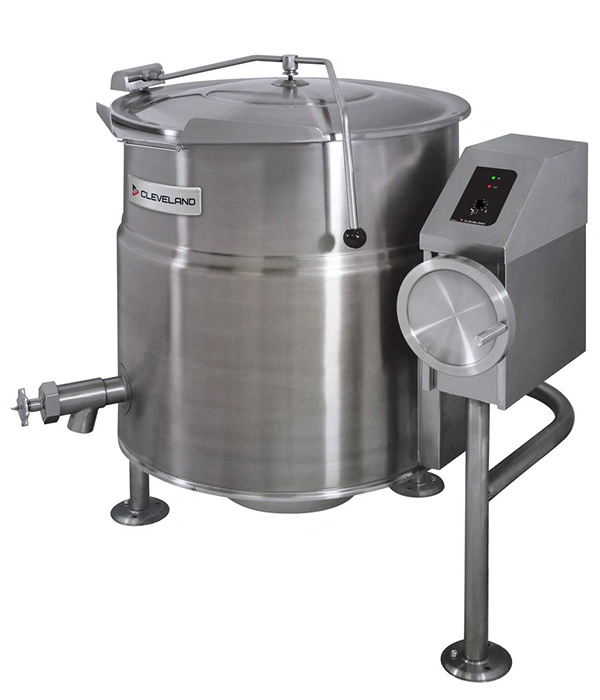

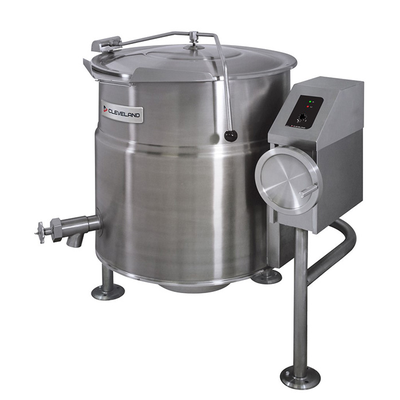

Cleveland KEL80T Tilting Electric Steam Quad-Leg Kettle
The Cleveland KEL80T Tilting Electric Steam Quad-Leg Kettle is a self-contained, 80-gallon electric kettle designed for high-capacity commercial foodservice cooking. Its 2/3 steam-jacketed construction uses a permanently filled steam jacket with a 50 psi (3.5 bar) rating to support higher cooking temperatures. The kettle and quad-leg supports are constructed from Type 304 stainless steel, with an #4 finish on the kettle and exterior surfaces for a durable, easy-to-clean cooking vessel. A large pouring lip accommodates high-capacity batches and chunky products, while the reinforced rolled rim helps protect the kettle edge during use. The electric kettle operates on 208–240 volts, 60 Hz, 3 phase, 3 wire power and provides 14.7 kW.
The KEL80T features splash-proof solid-state temperature and safety controls with less than ±1°C variance, supporting consistent temperature adjustment from 145°F to 260°F (63°C to 127°C). The control panel includes LED indicators for the heat cycle and low-water condition, along with power and adjustable temperature controls. A combination pressure/vacuum jacket gauge and 50 psi safety valve provide monitoring and pressure protection, while solid-state water level control eliminates the need for a sight-glass gauge. The quad-leg design incorporates 1 5/8-inch O.D. supports with adjustable feet for floor bolting. A roller-bearing tilt mechanism with a self-locking worm and segment gear assists with controlled tilting for transferring prepared food.
Key Features
- 80-gallon self-contained tilting electric steam kettle
- 2/3 steam-jacketed Type 304 stainless steel construction
- 50 psi (3.5 bar) steam jacket rating
- Permanently filled steam jacket
- 50 psi safety valve and combination pressure/vacuum jacket gauge
- Splash-proof solid-state temperature and safety control system
- Temperature control range of 145°F to 260°F (63°C to 127°C)
- Temperature control variance of less than ±1°C
- Large pouring lip for high-capacity and chunky products
- Reinforced rolled rim design
- Welded-in heating elements
- Solid-state water level control
- 1 5/8-inch O.D. quad-leg supports with adjustable feet for floor bolting
- Roller-bearing tilt mechanism with self-locking worm and segment gear
- 208–240 volts, 60 Hz, 3 phase, 3 wire; 14.7 kW
- Shipping weight: 470 lb (213 kg)
- Dimensions: 49" W x 42" D x 44" H
