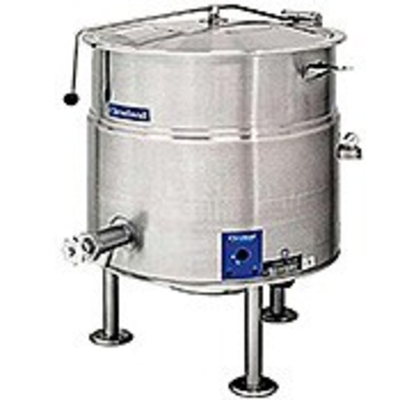

Cleveland KEL40 Electric Steam Kettle
The Cleveland KEL40 Kettle is a stationary electric steam kettle designed for commercial foodservice operations requiring reliable batch cooking and precise temperature control. This self-contained, tri-leg mounted kettle features a 40-gallon (150-liter) capacity and a 2/3 steam-jacketed design rated at 50 psi (3.5 bar) for higher cooking temperatures. The kettle and supports are constructed from Type 304 stainless steel with a #4 finish for durability and easier cleaning. Its permanently filled steam jacket uses treated water and does not require routine venting or refilling. A large pouring lip accommodates high-capacity batches and chunky products, while the spring-assisted domed cover provides convenient access to the cooking vessel. The 1.50-inch freeboard above rated batches provides additional space during cooking.
The Cleveland KEL40 features splash-proof solid-state temperature and safety controls with less than ±1°C variance, making it suitable for applications requiring consistent temperature management. The plug-in control module includes adjustable temperature control, power, heat-cycle, and low-water LED indicators. The kettle operates from 145°–260°F (63°–127°C). A rear-mounted pressure gauge and 50 psi safety valve provide accessible pressure monitoring, while the solid-state water level control eliminates the need for a sight glass. Welded-in heating elements and a splash-proof element cover with a double gasket seal support the heating system. The 2-inch (50 mm) tangent draw-off valve provides a practical method for removing prepared product.
Key Features
- 40-gallon (150-liter) capacity
- Stationary, self-contained electric steam kettle
- 2/3 steam-jacketed design with 50 psi (3.5 bar) rating
- Type 304 stainless steel kettle and supports with #4 finish
- Solid-state temperature and safety controls with less than ±1°C variance
- Operating temperature range: 145°–260°F (63°–127°C)
- Spring-assisted domed cover with 1.50-inch freeboard above rated batches
- 2-inch (50 mm) tangent draw-off valve
- Rear-mounted pressure gauge and 50 psi safety valve
- Solid-state water level control
- Splash-proof element cover with double gasket seal
- Standard electrical specification: 208–240 V, 60 Hz, 3 phase, 3 wire
- Power: 14.7 kW
- Dimensions: 31 W x 29 D x 40 H inches
- Shipping weight: 280 lb (127 kg)
- Base-mounted design with three tri-bolt flanges for floor bolting
