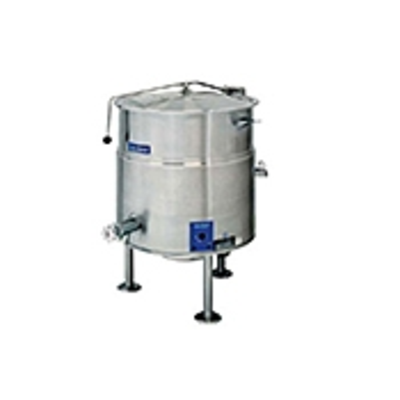

Cleveland KEL100 Electric Steam Kettle
The Cleveland KEL100 Kettle is a stationary electric steam kettle designed for high-volume commercial cooking applications. This self-contained, tri-leg mounted kettle features a 100-gallon (375-liter) capacity and a 2/3 steam-jacketed design with a 50 psi (3.5 bar) steam jacket rating for efficient heating and higher cooking temperatures. Constructed from Type 304 stainless steel, the kettle and supports provide a durable, cleanable cooking surface for professional foodservice operations. Its permanently filled steam jacket eliminates the need for routine venting or refilling, while the large pouring lip accommodates high-capacity batches and chunky products. A spring-assisted domed cover and reinforced rolled rim further support practical, everyday operation.
The Cleveland KEL100 includes splash-proof solid-state temperature and safety controls with less than ±1°C variance for accurate cooking and simmering. The control panel features adjustable temperature control, power and heat-cycle LED indicators, and a low-water indicator. A 2-inch (50 mm) tangent draw-off valve supports convenient product removal, while the rear-mounted pressure gauge and 50 psi safety valve provide accessible pressure monitoring and protection. Welded-in heating elements and a splash-proof element cover with a double gasket seal help maintain the kettle's sealed heating system. The Type 304 stainless steel exterior has a #4 finish for easier cleaning, and the base-mounted support system includes level-adjustable feet for floor bolting.
Key Features
- 100-gallon (375-liter) capacity
- Stationary, self-contained electric steam kettle
- 2/3 steam-jacketed design with 50 psi (3.5 bar) rating
- Type 304 stainless steel kettle and supports with #4 finish
- Solid-state temperature control with less than ±1°C variance
- Operating temperature range of 145°–260°F (63°–127°C)
- 2-inch (50 mm) tangent draw-off valve
- Spring-assisted domed cover with 1.50-inch freeboard above rated batches
- Rear-mounted pressure gauge and 50 psi safety valve
- Self-contained steam source requiring only an electrical hookup
- Standard electrical specification: 208–240 V, 60 Hz, 3 phase, 3 wire
- Dimensions: 40 W x 39 D x 45 H inches
- Shipping weight: 415 lb (195 kg)
- Power: 14.7 kW
