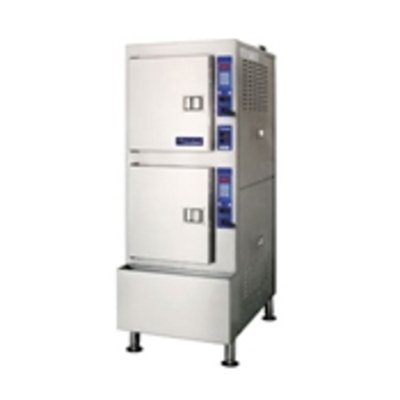

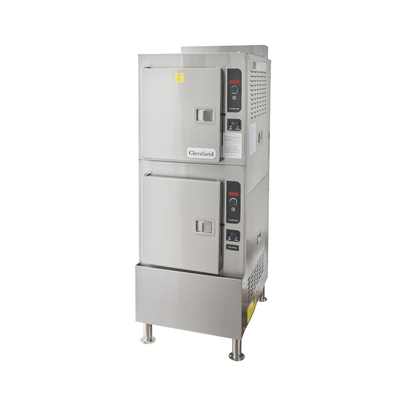

Cleveland 24CGA10.2 Steamcraft Gemini 10 Steamer
The Cleveland 24CGA10.2 Steamcraft Gemini 10 Steamer is a two-compartment floor model pressureless convection steamer designed for high-volume commercial foodservice operations. This gas-operated steamer features twin independent gas-fired atmospheric steam generators, with each compartment equipped with its own generator, gas valve, and water level controls. Each compartment accommodates up to five 12" x 20" x 2 1/2" steam table pans, providing a total capacity of up to 10 pans. Exclusive brass Steam Jets distribute steam throughout each cooking compartment, while the cold water condenser design supports dry steam cooking. The Type 304 stainless steel cooking compartments, doors, and generators provide durable construction for demanding kitchen environments.
Each generator uses a high-efficiency forced-air gas power burner with 72,000 BTU input per compartment for steam generation. Automatic water fill activates when the unit starts, while remote probe-type water level controls maintain water levels during operation. Automatic generator blowdown and exterior deliming ports simplify maintenance. The Gemini Drain/Power Control System uses a 1/2" ball valve-style drain to automatically control power. Each compartment includes a 60-minute electro-mechanical timer with SureCook load-compensating operation and a manual bypass switch for constant steaming. Standby Mode keeps the generator at steaming temperature for quick cooking starts. Two-piece self-adjusting doors feature reversible gaskets and an airtight seal, while a safety switch shuts off compartment steam when the door is opened. Front-access controls are housed in a pullout service drawer.
Key Features
- Two-compartment floor model pressureless convection steamer
- Twin independent gas-fired atmospheric steam generators
- 72,000 BTU input per compartment
- Each compartment accommodates five 12" x 20" x 2 1/2" steam table pans
- Independent generators, gas valves, and water level controls
- High-efficiency forced-air gas power burners
- Automatic water fill on startup
- Remote probe-type water level controls
- Automatic generator blowdown
- Exclusive brass Steam Jets for steam distribution
- Gemini Drain/Power Control System with 1/2" ball valve-style drain
- 60-minute electro-mechanical timers with SureCook load compensation
- Manual bypass switches for constant steaming
- Standby Mode maintains steaming temperature
- 14-gauge Type 304 stainless steel construction
- Two-piece self-adjusting doors with reversible gaskets
- Front-access generator controls with pullout service drawer
- Compartment steam shut-off switch when the door is opened
- 6" stainless steel adjustable legs with flanged feet
- Dimensions: 24" W x 33.5" D x 65.5" H
- Weight: 565 lb
- Primary power input: 115-120 V x 60 Hz x 1 PH
